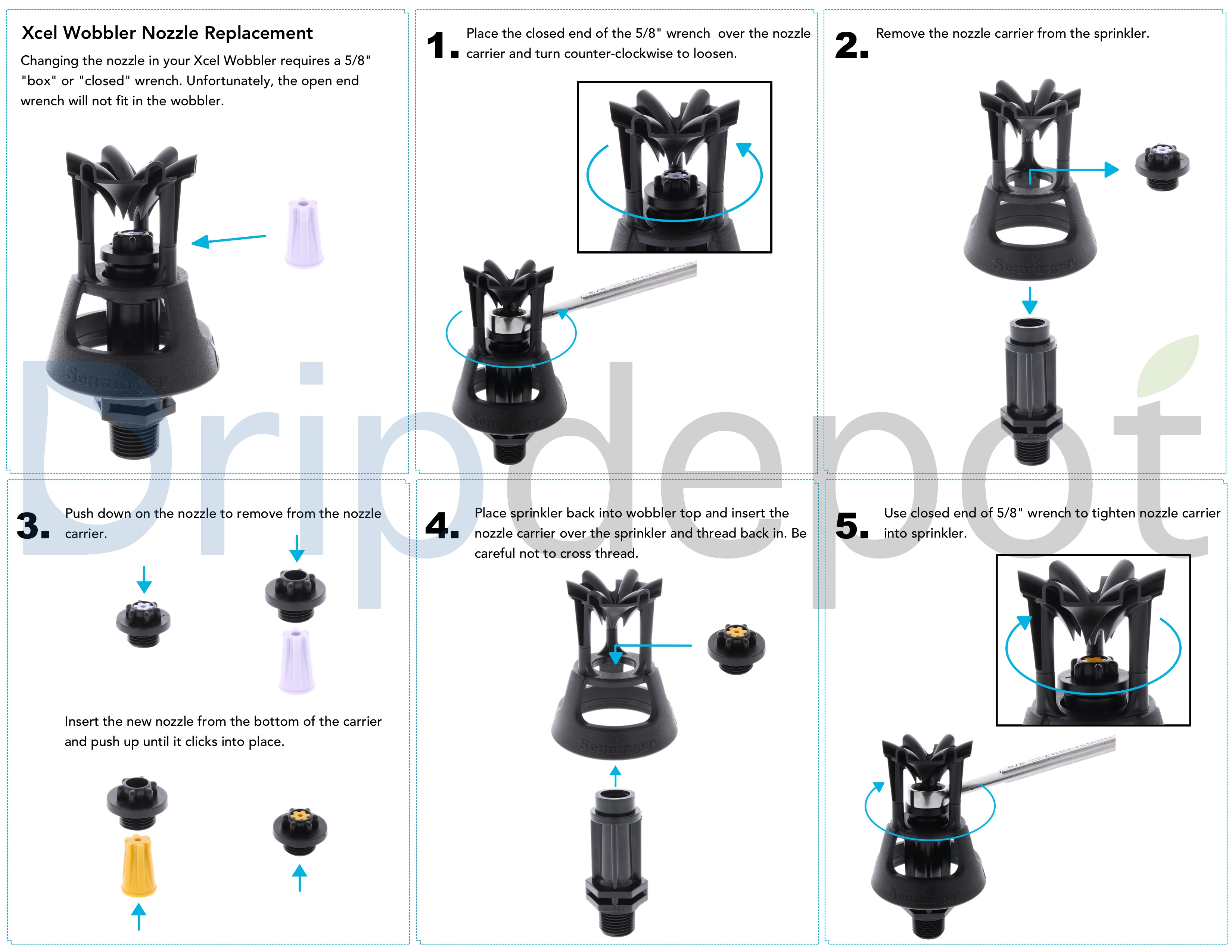

Wobbler/Xcel Wobbler Nozzle Replacement Changing the nozzle in your Xcel Wobbler requires a 5/8" "box" or "closed" wrench. Unfortunately, the open end wrench will not fit in the wobbler.

1. Place the closed end of the 5/8" wrench over the nozzle carrier and turn counter-clockwise to loosen.
2. Remove the nozzle carrier from the sprinkler.
3. Push down on the nozzle to remove from the nozzle carrier. Insert the new nozzle from the bottom of the carrier and push up until it clicks into place.
4. Place sprinkler back into wobbler top and insert the nozzle carrier over the sprinkler and thread back in. Be careful not to cross thread.
5. Use closed end of 5/8" wrench to tighten (turning clockwise) nozzle carrier into sprinkler.
